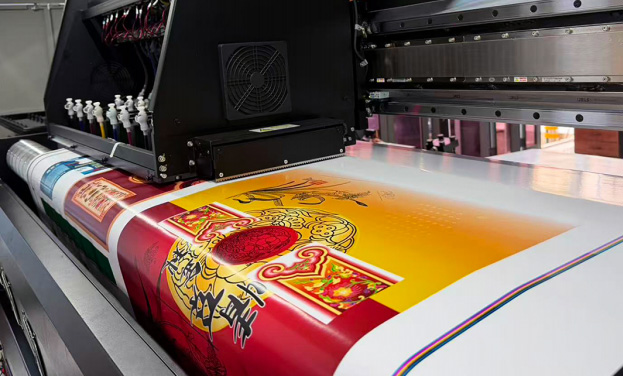

DM1808 DM1816 Digital Printing Machine

DM1808/DM1816 Digital Printing Machine

The DM1800 series digital printing system offers customers a cost-effective, feature-richand highly reliable solution for printing on coated paper, gray cardboard, offset paper.kraft paper, and more. Equipped with KYOCERA industrial-grade piezoelectric printheads, the system leverages precise droplet control and high-frequencyjetting technology to deliver fast, accurate print output.
Paired with JoinMars' proprietary KYOCERA-optimized aqueous pigment inks, theJM1800 significantly enhances both productivity and print quality-reducing operationalcosts while ensuring efficient, stable, and high-performance production.

Parameter Value
Model DM1808/DM1816
Printhead Configuration 8-16 for KYOCERA
Colors C/M/Y/K/LC/LM/LK/LLK/O/G/V/R
Ink Type Joinmars digital print ink
Color Mode 4color or 8color
Ink Cartridge Capacity 4color: 40L/color | 8color: 15L/color
Supported Media Coated paper, matte art paper, gray cardboard, white cardboard, offset paper, kraft paper, etc.
Maximum Print Width 1800mm
Supported Media Width 1900mm
Supported Media Weight min $31\text{g/m}^2$
Max. Media Roll Weight 1.5T
Max. Unwound Roll Diameter 1.5M
Take-up Options Sheet cutting or roll-to-roll winding
Drying System Infrared drying
140x140

Unmatched productivity,setting new industry benchmarks：

Equipped with Kyocera industrial print heads, it achieves an av-erage comprehensive speed of approximately 200㎡/h in pro-duction mode, with a monthly output exceeding 100,000㎡

High quality and high productivity: Featuring Kyocera industrialprint heads, it offers superior industrial-grade durability formore stable continuous operation,functioning as a 24/7non-stop "money-printing machine."



Perfect mastery of specialty papers and cardstocks：

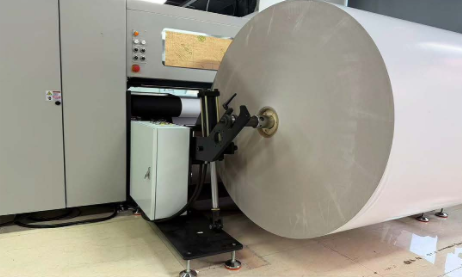

1.5-ton giant paper supply: Minimizes roll-change downtime tothe extreme, pushing Overall Equipment Effectiveness(OEE)beyond 95%.
More convenient paper loading: Ensures both safety and highefficiency.

140x140



140x140

Multi-color Configuration, Redefining Industrial-Grade Color:

8-Color Wide Gamut Setup: Effortlessly meets diverse require-ments to deliver high-quality production.Precision Arrangement of 16 Print Heads: Achieves ultra-highink coverage in multi-pass printing modes, ensuring rich, soliddark tones and smooth gradient transitions that rival tradition.al offset printing.



Flexible Smart Manufacturing

Roll-to-Roll: Equipped with high-precision tension controlto ensure neat and compact winding, allowing for directintegration with subsequent die-cutting or laminatingprocesses.
Roll-to-Sheet: Features inline cutting that instantly con-verts rolls into individual sheets immediately after print-ing.This eliminates the need for secondary handling, significantly shortening delivery cycles and reducing laborcosts.

140x140



140x140

"Lights-Out Factory" Experience

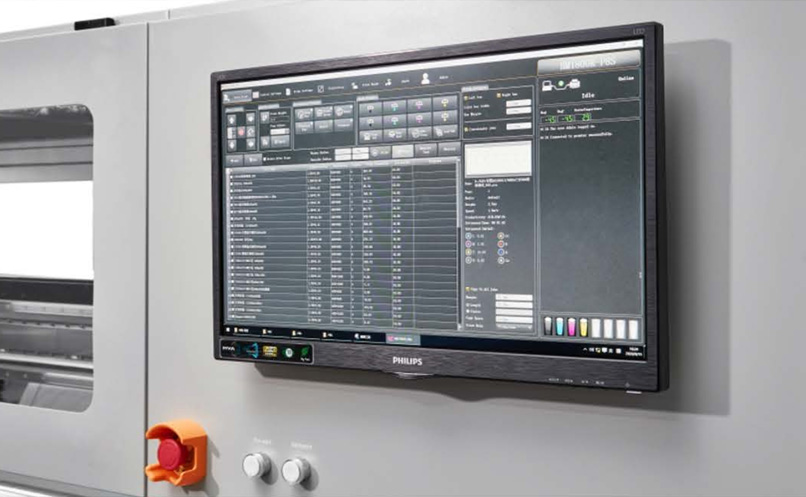

Full Automation:Intelligent closed-loop control manages ev-erything from 1.5-ton roll tension to automatic printheadmaintenance. Unattended Operation: Features remote control, auto-detec-tion (width/margins),and self-recovery from errors, enablingone operator to manage multiple machines.Enhanced UX: An upgraded, intuitive interface ensures effort-ess interaction.
